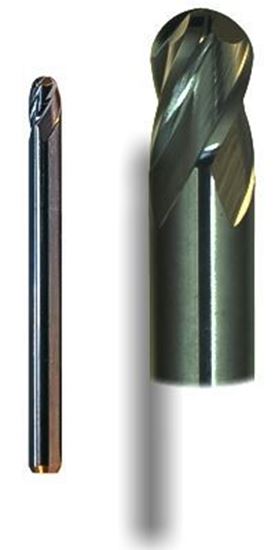

PreciseBits MN408 ball Endmill

Overview

These PreciseBits brand ball end mill bits feature an end-cutting ball-nose that supports high plunge rates and full profile cutting. The positive cutting geometry at center eliminates bottom artifacts in 3D profiling while the flute geometry enhances rigidity for more accurate, single pass cutting at high chip loads. Also, the cutting edge geometry virtually eliminates chatter at high feed rates.

• Machining mild steel tool steel and stainless steel (with cutting fluid)
• Machining non-ferrous and precious metals for jewelry fabrication
• Machining steel counter-plates for steel-rule dies(with cutting fluid)
• Cutting and shaping cast iron (with cutting fluid)

• Geometry: 4-flute stub, 1/8" (3.18 mm) shank, end-cutting ball-nose
• Length: 1.50" ±0.010"
• Diameter tolerances:
  • 0.1250": +0.0000", -0.0020"
  • 0.0625" to 0.1200": ±0.0010"
  • 0.0010" to 0.0624": ±0.0005"
• Shank dia. 0.1248" (3.18 mm) +0.0000", -0.0002"
• Max runout (TIR)" < 0.0005"
• Max. depth of cut: DOC varies by diameter ±0.005" typically 1.5X dia.
• Anticipated Life: material and cutting environment dependent
• Material: solid submicrograin carbide
• Ring Set: 0.800" ±0.002" (optional)
• Operating RPM: CNC certified operation 20k RPM to 100k RPM

Bit sizes
