NEMA 34 Stepper Motor Cover

Overview

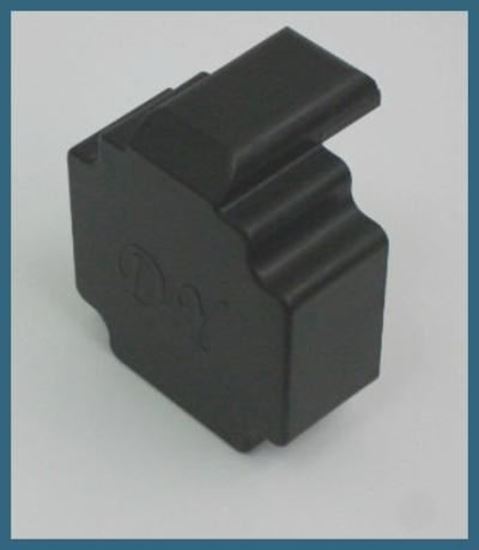

Back Cover Kit for NEMA34 Square Frame Stepper Motor.

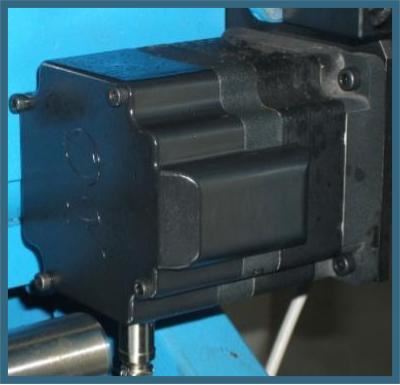

A neat solution to cover the stepper motor back side providing connector interface, motor wiring protection and rear shaft (if applicable) protection. Provides an aesthetic solution to a common problem while offering a connector interface for easy maintenance and setup process. It is that finishing touch for a professional looking machine

Features:

• Quality made of a durable plastic
• Easily mounts using the motor's existing screw holes (see installation guide for more info)
• Provides IP40 protection
• Suitable for both motors with or without rear shaft

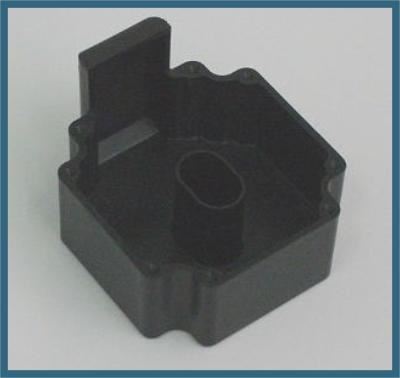

• Incorporates a sleeve protecting the rear shaft of a motor from interfering with the wiring
• Comes with pre-drilled center marks for fast and easy drilling of the mounting holes to suit the motor

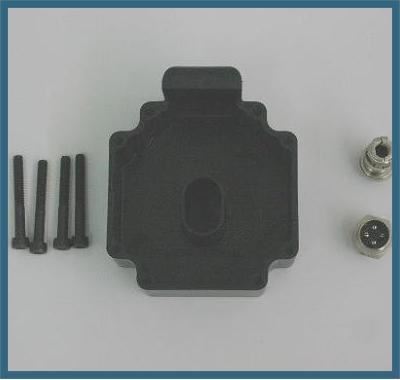

Each kit contains: 1 motor cover, 4 M4x40 mounting screws, 1 panel mount connector and 1 mating cable end connector.

NOTE: This cover is designed for NEMA34 86mm square frame motors.

Instructions

You can download the installation instructions here.
