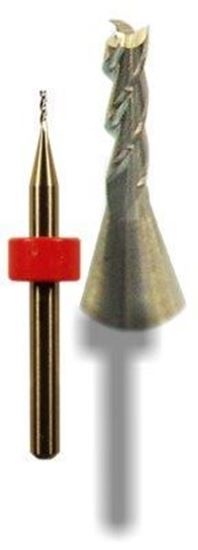

MM3I8 profile
MM3I8 profile
MM3I8 tip

PB-MM3I8

The MM3I8 bits are 3-flute standard length carbide tools designed for materials such as woods and plastics.
Manufacturer: PreciseBits
*
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The MM3I8 series of carbide end mills from PreciseBits are 3-flute standard length carbide tools designed for materials such as woods and plastics. They are compatible with most materials used in inlay and intarsia.

The 'fishtail' tip helps to eliminate backside breakage and splintering while the 3-flute design eliminates chatter due to increased rigidity. The cutting geometry is tuned to all aspects of inlay pocket cutting and component shaping work.

Applications
  • Compatible with most materials used in inlay and entarsia
  • Inlay pocket cutting
  • Component shaping work
Specifications
  • Geometry: 3 flute, 1/8 in. (3.18 mm) shank, fish tail point
  • Length: 1.50" ±0.010"
  • Diameter tolerances:
    • 0.1250": +0.0000", -0.0010"
    • 0.0010" to 0.1240": ±0.0005"
  • Shank dia.:
    • 0.1248" (3.18 mm) +0.000", -0.0002"
  • Helix angle: 28°
  • Max runout (TIR) < 0.0005"
  • Max. depth of cut: DOC varies by diameter ±0.005"
  • Material: solid submicrograin carbide
  • Ring Set: 0.800" ±0.002"
  • Operating RPM: CNC certified operation 20k RPM to 100k RPM

Bit sizes

ItemDescriptionUnit Price
1) PB-MM3I8-0150-006F0.0150"(0.381 mm), 0.06" max DOC, 1.5" OAL$19.84
2) PB-MM3I8-0156-006F1/64" (0.0156", 0.406 mm), 0.06" max DOC, 1.5" OAL$19.84
3) PB-MM3I8-0200-009F0.0200" (0.508 mm), 0.09" max DOC, 1.5" OAL$19.84
4) PB-MM3I8-0220-009F0.022" (0.559 mm) dia., 0.090" max DOC, 1.5" OAL$19.84
5) PB-MM3I8-0220-009FC0.022" (0.559 mm) dia., ZrN coated, 0.090" max DOC, 1.5" OAL$23.69
6) PB-MM3I8-0220-026FN0.022" (0.559 mm) dia., 0.090" EFL, necked 0.0190" dia. to 0.260" reach, 1.5" OAL$25.70
7) PB-MM3I8-0230-009F0.0230" (0.584 mm) dia., 0.090" max DOC, 1.5" OAL$19.84
8) PB-MM3I8-0230-009FC0.0230" (0.584 mm) dia., ZrN coated, 0.090" max DOC, 1.5" OA$23.69
9) PB-MM3I8-0250-010F0.0250" (0.635 mm), 0.10" max DOC, 1.5" OAL$19.84
10) PB-MM3I8-0250-010FC0.0250" (0.635 mm), ZrN coated, 0.10" max DOC, 1.5" OAL$19.84
11) PB-MM3I8-0313-010F1/32" (0.0313", 0.795 mm), 0.10" max DOC, 1.5" OAL$12.23
12) PB-MM3I8-0313-014F1/32" (0.0313", 0.795 mm), 0.14" max DOC, 1.5" OAL$12.23
13) PB-MM3I8-0313-017F1/32" (0.0313", 0.795 mm), 0.17" max DOC, 1.5" OAL$12.92
14) PB-MM3I8-0370-017F0.0370" (0.940mm), 0.170" max DOC, 1.5" OAL$11.22
15) PB-MM3I8-0380-017F0.0380" (0.965mm), 0.170" max DOC, 1.5" OAL$11.22
16) PB-MM3I8-0469-020F3/64" (0.0469", 1.194 mm), 0.20" max DOC, 1.5" OAL$12.23
17) PB-MM3I8-0500-025F0.0500" (1.27 mm), 0.25" max DOC, 1.5" OAL$12.23
18) PB-MM3I8-0555-025F0.0555" (1.422 mm), 0.25" max DOC, 1.5" OAL$12.23
19) PB-MM3I8-0560-025F0.0560" (1.422 mm), 0.25" max DOC, 1.5" OAL$12.23
20) PB-MM3I8-0625-031F1/16 in. (0.0625", 1.59 mm), 0.31" max DOC, 1.5" OAL$12.92
21) PB-MM3I8-0625-031FC1/16" (0.0625", 1.59 mm), ZrN coated, 0.31" max DOC, 1.5" OAL$16.22
22) PB-MM3I8-1250-050F1/8" (0.1250", 3.175 mm), 0.50" max DOC, 1.5" OAL$13.79
23) PB-MM3I8-1250-050FC1/8" (0.1250", 3.175 mm) dia., ZrN coated, 0.50 in. max DOC, 1.5 in. OAL$17.09
