Precise Bits MM208 Extended Length

Extended Length 2-Flute Soft Media Carbide Endmill
Manufacturer: PreciseBits
*
$0.00

Overview

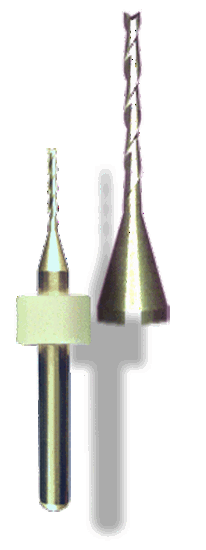

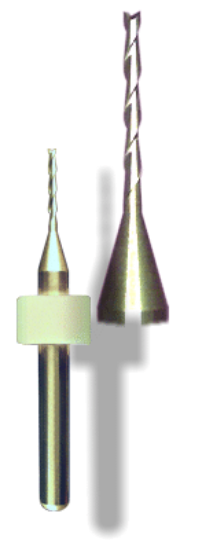

The MM208 series of end mills from PreciseBits are a 2-flute extended length carbide tool designed for materials such as woods and plastics. They are good choices for applications such as dimensional signage and 3D contouring.

The 'fishtail' tip helps to eliminate backside breakage and splintering while the high flute volume supports high feed rates / chip loads. The cutting geometry enhances rigidity for more accurate, single pass cutting at high chip loads. Compatible with ebony, rosewood and all other hardwoods

Applications
  • Dimensional signage
  • 3D contouring
  • Cabinetry, furniture making
  • Jewelry mold making



Specifications
  • Geometry: 2 flute, 1/8 in. (3.18 mm) shank, fish tail point
  • Overall Length (OAL)- as shown. ±0.010"
  • Aspect ratio - min. 6:1
  • Diameter tolerances:
    • 0.0000" to 0.0625" = nominal ±0.0005"
    • 0.0630" to 0.1181" = nominal ±0.0010"
    • 0.1250" = 0.1248" +0.0000", -0.0020"
  • Runout.:
    • OAL = 1.50": TIRmax < 0.0005"
    • OAL = 2.50": TIRmax < 0.0010"
    • OAL = 3.00": TIRmax < 0.0015"
  • Max. depth of cut: DOC varies by diameter ±0.005"
  • Anticipated Life - depends on material being cut (min 20,000 in, blue or green jeweler's wax)
  • Material: solid submicrograin carbide
  • Ring Set: 0.800" ±0.002"
  • Operating RPM: CNC certified operation 1k RPM to 60k RPM

Bit sizes

Item Description Unit Price
1) PB-MM208-0156-010FN 0.0156" (1/64", 0.4 mm), 0.045" EFL, 0.100". reach,1.50" OAL $22.00
2) PB-MM208-0200-026FN 0.0200" ( 0.51 mm), 0.090" EFL, 0.260". reach,1.50" OAL $22.00
3) PB-MM208-0200-013F 0.0200" (0.508 mm), 0.125" max DOC, 1.5" OAL $16.86
4) PB-MM208-0200-013FC 0.0200" (0.508 mm) ZrN coated, 0.125" max DOC, 1.5" OAL $20.74
5) PB-MM208-0313-026F 1/32" (0.0313", 0.794 mm), 0.26" max DOC,1.50" OAL $11.20
6) PB-MM208-0625-050F 1/16" (.0625", 1.600 mm), 0.50" max DOC, 1.50" OAL $10.54
7) PB-MM208-1250-113FL 1/8" dia., 1.125" max DOC, 3.0" OAL $38.88
