MM208 STD

PreciseBits MM208 Standard Length

Precise Bits 2-Flute Standard Length Soft Media Carbide Endmill
Manufacturer: PreciseBits
*
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

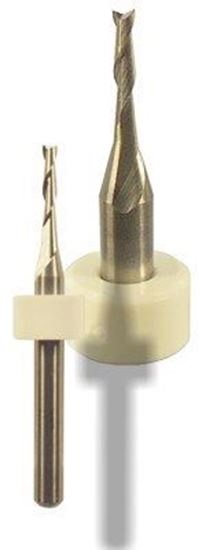

The MM208 series of end mills from PreciseBits are a 2-flute standard length carbide tool designed for materials such as woods and plastics. They are compatible with most materials used in inlay and intarsia.

The 'fishtail' tip helps to eliminate backside breakage and splintering while the high flute volume supports high feed rates / chip loads. The cutting geometry enhances rigidity for more accurate, single pass cutting at high chip loads. Compatible with ebony, rosewood and all other hardwoods

Applications
  • Cutting inlay pockets and shaping components
  • Shaping / routing hardwoods and softwoods
  • Machining reconstituted minerals
  • Machining and slotting composites
  • General purpose soft media machining
Specifications
  • Geometry: 2 flute, 1/8 in. (3.18 mm) shank, fish tail point
  • Length: 1.50" ±0.010"
  • Diameter tolerances:
    • 0.1250": +0.0000", -0.0020"
    • 0.0625" to 0.1200": ±0.0010"
    • 0.0010" to 0.0624": ±0.0005"
  • Shank dia.:
    • 0.1248" (3.18 mm) +0.000", -0.0002"
  • Helix angle: 28°
  • Max runout (TIR) < 0.0005"
  • Max. depth of cut: DOC varies by diameter ±0.005"
  • Anticipated Life - 6,000 linear inches (ebony, CNC milling)
  • Material: solid submicrograin carbide
  • Ring Set: 0.800" ±0.002"
  • Operating RPM: CNC certified operation 20k RPM to 100k RPM

Bit sizes

ItemDescriptionUnit Price
1) PB-MM208-0050-002F0.0050" (0.125 mm), 0.022" max DOC, 1/8" shank, 1.50" OAL$36.26
2) PB-MM208-0100-005F0.0100" (0.254 mm), 0.045" max DOC, 1.50" OAL$20.61
3) PB-MM208-0100-006F0.0100" (0.254 mm), 0.060" max DOC, 1.50". OAL$21.38
4) PB-MM208-0120-005F0.0120" (0.305 mm), 0.050" max DOC, 1.5" OAL$19.92
5) PB-MM208-0156-007F1/64" (0.0156", 0.396 mm), 0.07" max DOC$15.59
6) PB-MM208-0180-010F0.0180" (0.457 mm), 0.100" max DOC, 1.5" OAL$18.02
7) PB-MM208-0200-009F0.0200" (0.508 mm), 0.09" max DOC, 1.5" OAL$15.59
8) PB-MM208-0250-010F0.0250" (0.635 mm), 0.10" max DOC$13.05
9) PB-MM208-0313-013F1/32" (0.0313", 0.794 mm), 0.13" max DOC$9.25
10) PB-MM208-0313-013FC0.0313" (0.794 mm) ZrN coated, 0.125" max DOC, 1.5" OAL$13.12
11) PB-MM208-0350-017F0.0350" (0.889 mm), 0.17" max DOC, 1.5" OAL$9.25
12) PB-MM208-0394-020F0.0394" (1.000mm), 0.20" max DOC$9.25
13) PB-MM208-0394-020FC0.0394" (1.00 mm) ZrN coated, 0.200" max DOC, 1.5" OAL$13.12
14) PB-MM208-0394-026F1 mm (.0394"), 0.260" max DOC$9.75
15) PB-MM208-0394-026FC0.0394" (1.00 mm) ZrN coated, 0.260" max DOC, 1.5" OAL$13.62
16) PB-MM208-0430-026F0.0430" (1.09mm), 0.260" max DOC$9.75
17) PB-MM208-0430-026FC0.0430"(1.09mm) ZrN coated, 0.260" max DOC, 1.5" OAL$13.62
18) PB-MM208-0469-020F3/64" (0.0469", 1.194 mm), 0.20" max DOC$9.25
19) PB-MM208-0492-025F0.0492" (1.25 mm), 0.25" max DOC$9.25
20) PB-MM208-0500-025F0.0500" (1.27 mm), 0.25" max DOC$9.25
21) PB-MM208-0500-025FC0.0500" (1.27 mm) ZrN coated PreciseBit, 0.25" max DOC$13.10
22) PB-MM208-0625-020F1/16" (0.0625", 1.600 mm), 0.200" max DOC$9.82
23) PB-MM208-0625-031F1/16" (0.0625", 1.600 mm), 0.31" max DOC$9.82
24) PB-MM208-0625-031FC1/16" (0.0625", 1.600 mm) ZrN coated, 0.31" max DOC$13.12
25) PB-MM208-0787-038F2.00mm (0.0787"), 0.38" max DOC, 1.50" OAL$9.82
26) PB-MM208-0938-038F3/32" (0.0938", 2.388 mm), 0.38" max DOC$9.82
27) PB-MM208-0938-053F3/32 in. (0.0938", 2.388 mm), 0.53" max DOC$11.06
28) PB-MM208-1181-025F3.00 mm (0.1181"), 0.25" max DOC, 1.5" OAL$9.38
29) PB-MM208-1181-050F3.00 mm (0.1181"), 0.50" max DOC, 1.5" OAL$9.82
30) PB-MM208-1250-025F1/8" dia., 0.25" max DOC, 1.5" OAL$9.82
31) PB-MM208-1250-050F1/8" dia., 0.50" max DOC, 1.5" OAL$9.82
32) PB-MM208-1250-050FC1/8" ZrN coated, 0.50" max DOC, 1.5" OAL$12.82
33) PB-MM208-1250-063F1/8" dia., 0.63" max DOC, 2.0" OAL$11.15
34) PB-MM208-1250-063FC1/8" dia. ZrN coated, 0.625" max DOC, 2.0" OAL$14.15
