RCD08 Router Bit

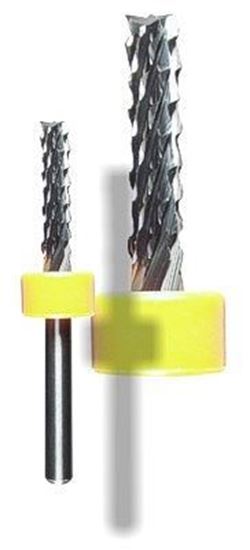

PreciseBits RCD08 Diamond Cut Router Bit

A great for composites and PCB substrates
Manufacturer: PreciseBits
*
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

- A great for composites and PCB substrates

These miniature router bits are optimized for cutting composite materials such PCB substrates, G10, carbon fiber and reconstituted minerals. The fish tail point eliminates backside breakout and splintering. The Diamond grind produces smooth sidewalls with minimal top edge burr formation. This type of router bit typically has a slightly better surface finish. where as the RCC08 version has a slightly higher cutting rate.

Specifications
  • Diamond-cut flutes, 1/8" (3.18 mm) shank, fish-tail point
  • Length - 1.5" ±0.010"
  • Diameter - nominal +0.000", -0.002"
  • Max runout (TIR) - < 0.0005"
  • Runout (TIR): +-0.0002"
  • Max. depth of cut - EFL varies by diameter ±0.005"
  • Anticipated Life: 3,000 linear inches (FR4 epoxy glass)
  • Material: solid sub-micrograin carbide
  • Ring Set - 0.800" ±0.002"
  • Operating RPM: CNC certified operation 20k RPM to 60k RPM

Applications

  • De-paneling printed circuit boards
  • Contour cutting internal pockets in PCB substrates
  • Shaping reconstituted minerals (high mineral to resin ratio
  • Cutting sheet composites

Bit sizes

ItemDescriptionUnit Price
1) PB-RCD08-0197-008F0.50mm (0.0197"), 0.079" DOC$6.49
2) PB-RCD08-0315-020F0.800mm (1/32", 0.0315"), 0.197" DOC$4.77
3) PB-RCD08-0315-020FC0.800mm (1/32", 0.0315"), ZrN coated, 0.197" DOC$8.06
4) PB-RCD08-0315-020D0.80mm (1/32", 0.0315"), drill point, 0.197" DOC$4.77
5) PB-RCD08-0394-026F0.800mm (1/32", 0.0315"), ZrN coated, 0.197" DOC$4.78
6) PB-RCD08-0394-026FC0.80mm (1/32", 0.0315"), drill point, 0.197" DOC$8.06
7) PB-RCD08-0433-026F1.000mm, 0.256" DOC$4.77
8) PB-RCD08-0433-028D1.000mm (0.0394") ZrN coated, 0.256" DOC$4.77
90) PB-RCD08-0472-026F0.0433" (1.10mm) 1/8" shank, 0.256" max DOC$4.77
01) PB-RCD08-0472-026FC1.200mm, ZrN coated, 0.256" DOC$8.07
11) PB-RCD08-0500-026F0.050", 0.256" DOC$4.77
12) PB-RCD08-0500-026FC0.0500", ZrN coated,, 0.256" DOC$8.07
13) PB-RDD08-0551-015D1.40mm (0.0551") 1/8" shank, drill point, 0.150" max DOC$4.77
14) PB-RCD08-0591-032F1.500mm, 0.315 DOC$4.77
15) PB-RCD08-0591-032FC1.500mm, ZrN coated, fish-tail diamond cut router bit, 0.315 in. DOC$8.07
16) PB-RCD08-0625-032F0.0625", 0.315" DOC$4.77
17) PB-RCD08-0625-032FC0.0625" (1.588mm)., ZrN coated, 0.315" DOC$8.07
18) PB-RCD08-0625-032D0.0625" (1.59mm) drill-point, 0.315" max DOC$4.77
19) PB-RCD08-0630-032F1.600mm, 0.315" DOC$4.77
20) PB-RCD08-0630-032FC1.600mm (1/16", 0.0630"), ZrN coated, 0.320" DOC$8.06
21) PB-RCD08-0709-032F1.800mm, 0.315" DOC$4.77
22) PB-RCD08-0748-032F0.0748" (1.90mm) 1/8" shank, 0.315" max DOC$4.77
23) PB-RCD08-0748-032D1.900mm, drill point, 0.315" DOC$4.75
24) PB-RCD08-0787-032F2.00mm (0.0787"), 0.315" DOC$4.77
25) PB-RCD08-0787-032FC2.00mm, (0.0787"), ZrN coated, 0.315" DOC$8.06
26) PB-RCT08-0787-028D2.00mm (0.0787") 1/8" shank, drill-point Tab-Cutter de-panelling router, 0.280" max DOC$4.77
27) PB-RCD08-0938-039F0.0938", 0.394" DOC$4.77
28) PB-RCD08-0938-039FC0.0938" (2.383mm), ZrN coated, 0.390" DOC$8.07
29) PB-RCD08-0938-039D3/32" (0.0938") drill point, 0.387" DOC$4.77
30) PB-RCD08-0945-039F0.0945" (2.400mm), 0.394" DOC$4.77
31) PB-RCD08-0984-039F2.500mm, 0.394" DOC$4.77
32) PB-RCD08-1004-039D0.1004" (2.55mm) drill-point, 0.394" max DOC$4.77
33) PB-RCD08-1181-039F3.000mm, 0.387" DOC$4.77
34) PB-RCD08-1181-039FC3.00mm, (0.1181"), ZrN coated, 0.390" DOC$8.06
35) PB-RCD08-1250-047F0.1250", 0.472" DOC$4.77
36) PB-RCD08-1250-047FC0.1250", ZrN coated, 0.472" DOC$8.06
37) PB-RCD316-1875-063F3/16" (0.1875" 4.76mm) dia, 0.625" DOC, 4° (shallow) dish, 3/16" shank, 2.0" OAL$12.87
38) PB-RCD04-2500-100F1/4" (0.2500", 6.35mm) dia., 1.00"DOC, 20° dish, 1/4" shank, 3.0" OAL$17.67
