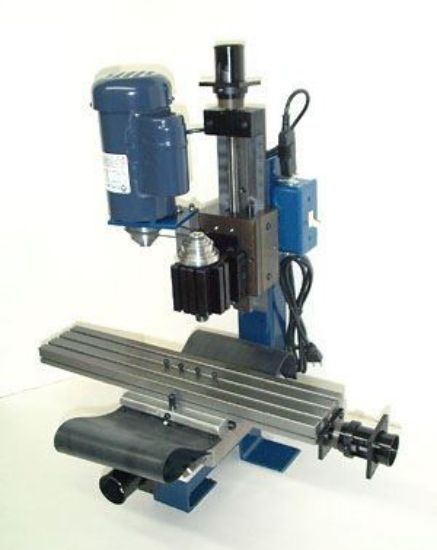

Taig CNC Mill Kits

Quality, USA made, Taig CNC mill kits
Manufacturer: Taig
*
$2,219.00

Overview

NEW! The Taig CNC mill is now available with ballscrews! The ballscrews are precision matched with the ball bearings to provide nearly zero backlash and low friction operation.

The Micro Mill is a very rigid and precise machine that uses some of the most advanced techniques compared to its competitors. The Y-axis and Z-axis are supported on 2 1/2 inch square steel tubing to provide a very solid feel. The leadscrews are all 1/2-20 unlike a lot of machines of similar size that use 1/4 inch leadscrews. TAIG prefers to provide added mechanical features to allow the mill to be more useful without raising the price. Being an aerospace manufacturer for over 18 years our machinists know the importance of table back-lash compensation and full gib adjustments for wear as employed in the manufacture of the Micro Mill. Basically, the Micro Mill was designed by machinists and built by machinists. Overall working accuracy should exceed .0005 in. All machines are sold with a 14 day refund and a full 2 year factory warranty on all Mill components and accessories.

This is the machine you don't have to baby. The Micro Mill is a rugged precision instrument that has plenty of rigidity. It has a life-time ball bearing spindle, coupled with a six speed positive 'V' belt drive. Spindle speeds in geometric progression from 1000 - 10000 rpm provide the power to "HOG" 1/8 inch cuts in mild steel or the speed and precision to "dust" a few tenths. Adjustable gibs provide full compensation for X,Y & Z axis wear. The spindle head column can rotate from 0 to 180 degrees to provide for special machining tasks. All this adds up to a BEST VALUE in small mills.

We offer complete Taig CNC systems with our rugged STDR-4C controller. A basic system is available as well as starter kits for even more savings, please see the 'Options' tab for Starter kit details.


Taig CNC Mill Basic Kit

  • Taig 2019CR-ER
  • Soigeneris STDR-4C Ethernet 3 Axis Kit
    • STDR-4C Control
    • 166 oz-in stepper motors (276 oz-in for ballscrew mill)
    • 8', 20AWG, stepper cables
    • Ethernet cable
  • Soigeneris Line Filter for Taig
  • Mach 3 License
Total  $2,279.00
Package Savings $60.00
You Pay Only $2,219.00

Also check the options tab for our Starter Kits which offer a bigger savings. Not sure what you need. Feel free to contact us for a quote on a system customized for your needs.

Features


  • ER-16 Spindle
  • Height - 26 3/8", Width - 22", Depth 21"
  • 1/2"-20 leadscrews on X,Y,& Z
  • Construction - Steel, hard anodized aluminum on all moving components
  • Adjustable brass gibs, and precision ground steel ways
  • Z axis steel box ways
  • Travel - X 12", Y 5.5", Z 6"
  • Z-Axis swivel 90 degrees
  • 6 spindle speeds 1000-10000 RPM
  • Spindle head rotation 90 degrees



Specifications

Taig Mill Specs
  • Height - 26 3/8", Width - 22", Depth 21"
  • Weight - 85 lbs
  • Maximum bearing runout 0.0003"
  • Pulley type std. 5/8 in. bore multi-step 'V' belt
  • Screws accurate to 0.006" per foot
  • Travel - X 12", Y 5.5", Z 6"
  • Maximum Z-distance to table 9.0"
  • Table dimensions 3 1/2 x 18.4 inches
  • 6 spindle speeds 1000-10000 RPM
  • Spindle head rotation 90 degrees



Options

Taig Mill Starter Kit A

  • All items in the Basic Kit
  • Taig 1159 belt (spare)
  • Taig 2228 edge finder
  • Taig 1310 Spindle Wrenches (2)
  • Taig 1140ER drill chuck adapter
  • Taig 1090-1/4” Jacobs chuck (industrial)
  • Taig Line filter kit
  • Sherline 3013 clamp block kit
  • CamBam License
Total $2560.00
Package Savings $110.00
You Pay Only $2450.00

Ballscrew upgrade

Taig has just released a ballscrew option for the mill. The ballscrews are precision matched with the ball bearings resulting in nearly zero backlash and low friction operation. As the ballscrew mills have about half of the drive reduction as the leadscrew version we are using 276-oz in motors which are a better match for the motion profile.

Taig Ready Rotary Table Kit

We teamed up Sherline's tough rotary table with the proper mounts, tailstock, stepper motor and cable for the Taig mill. You can add the rotary table kit to your system as well. The stepper motor is set up to plug into the STDR-4C.

Not sure what is right for you? Let us create a starter kit just for you. Give us a call or drop us an email and let us know what your looking for and what type of work you will be doing. We will work with you to come up with a package that works for your needs.

Downloads


Coming soon...

Customers who bought this item also bought

ER16 Collet set (1040ER)

6-piece ER16 Collet set (1/16”, 1/8”, 3/16”, ¼”, 5/16”, 3/8”)
$65.20

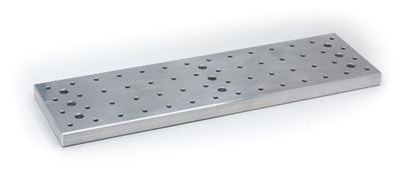

Taig tooling plate (2010)
