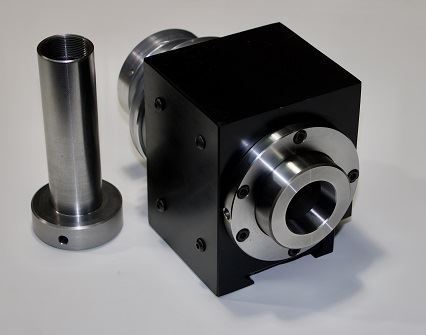

5C Spindle

Taig CNC Mill to Lathe Kit

The Taig 4105C5 upgrade kit will convert your Taig CNC mill to the Taig CNC lathe with a 5C headstock.
Manufacturer: Taig
$1,199.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Taig 4105C5 CNC Mill to CNC Lathe upgrade kit


This page is still being worked on.

The TAIGTurn CNC Lathe is a top of the line desktop CNC lathe. It is a very rigid and precise machine that uses some of the most advanced techniques that allows it to produce parts that used to be done on machines that cost thousands of dollars more. With a rapid feed of up to 100 inches per minute you can go from tool to tool in just seconds.

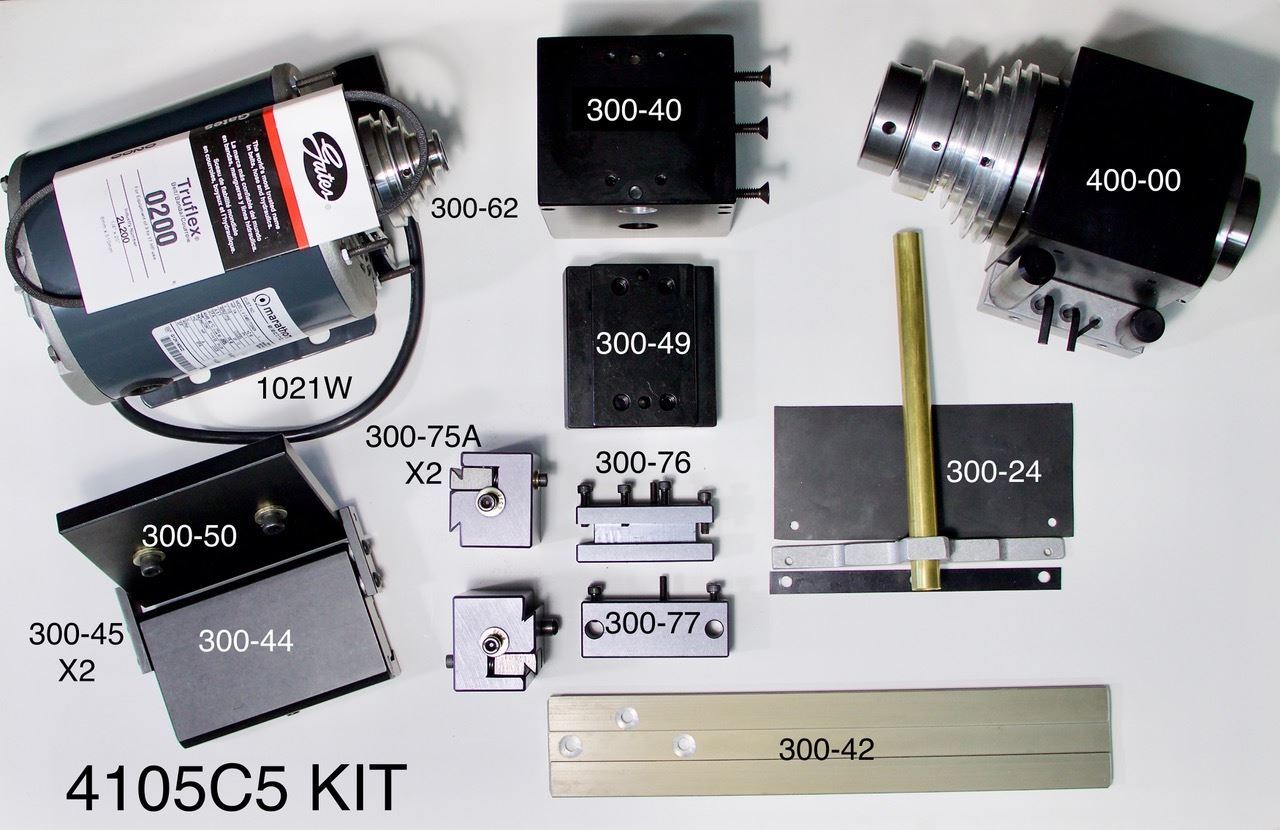

The Taig 4105C5 upgrade kit will convert your Taig CNC mill to the Taig CNC lathe with a 5C headstock. It includes the following parts 1021W, 400-00, 300-24, 300-40, 300-42, 300-44, 2-300-45, 300-49, 300-50, 300-62, 400-64 plus 2 adjustable Tool Posts (2-300-75 ,300-76,300-77).
(Weight about 50 pounds)


Specifications

Spindle 5C

  • Spindle Runout less than .0002"
  • Sealed precision ball bearing
  • Bearing OD 2.9528", ID 1.7717"
  • Spindle hole 1 3/16"
  • Spindle ID taper 10 deg (20 deg included)
  • Max. collet diameter 1 1/16"
  • Pulley size 1.625" bore.
  • Ball Bearings in all leadscrew bearing blocks

Options


Tool Post Prices

#300-75Adjustable Tool Post Main Body $52.00
#300-76Tool Post Toolholder with slot to hold 3/8" tool. $38.00
#300-77Tool Post Toolholder with two 3/8" diameter holes to hold 3/8" dia. tools. $38.00
#300-78Tool Post Toolholder with two 5/8" diameter holes to hold 5/8" dia. tools. $38.00


TAIGTurn Lathe Parts

#300-04ER16 1 1/4" Spindle Wrench Tool $5.00
#300-24Brass Tube Holder $15.00
#300-40Lathe Headstock and Motor Rail Block $50.00
#300-42Tool Post Toolholder with two 5/8" diameter holes to hold 5/8" dia. tools. $38.00
#300-44Lathe Motor Slide Body $25.00
#300-45Motor Slide Pivots (2 req) $3.00
#300-49Lathe Headstock Dovetail Mount $27.50
#300-50Lathe Motor Mount Plate $20.00
#300-62Lathe 1/2" Motor Pulley $15.00


CNC Lathe threading kit

SOI-TT-ThreadAdd a threading sensor to your Taig Turn CNC lathe. Contains LMTS-4I Junction box and TaigTurn Tach sensor kit $84.00


Downloads


Coming soon...
