Taig CR 'Computer Ready' Mills

Quality, USA made, Taig mills
Manufacturer: Taig
*
€0.00

Overview

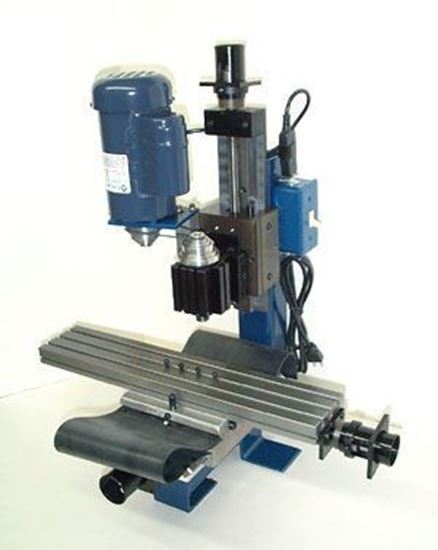

The Taig mill is available in a 'Computer Ready' form. It comes as the complete CNC mill but without the stepper motors and control box. This is a good option if you want to by the basic computer ready mill and build up your own stepper motors and control box.

NEW! The Taig CNC mill is now available with ballscrews! The ballscrews are precision matched with the ball bearings to provide nearly zero backlash and low friction operation. If you currently have a Taig 2019CR-ER you can upgrade it to the ballscrew version in a couple of different ways.

Option 1: Buy the 5019CR-ER kit and swap over all of your electronics. You could then add crank handles to your old 2019 mill and use it as a manual mill or sell it to pay for the upgrade.

Option 2: Buy the 5019CR-Kit which has all the parts you will need for your upgrade. The kit includes a new ballscrew XY base and Z axis ballscrew assembly. You reuse your Z axis ways, headstock and spindle. Take note that for the ball screw mill we recommend the 276oz-in stepper motors as they are a better match.

2019CR-ER
This is the complete CNC ready mill with the standard leadscrews, it does not include stepper motors or a control box. This is a good option if you want to by the basic computer ready mill and build up your own stepper motors and control box.

5019CR-ER
This is the complete CNC ready mill with the ballscrew upgrade, it does not include stepper motors or a control box. This is a good option if you want to by the basic computer ready mill and build up your own stepper motors and control box. If you currently have a Taig 2019CR-ER based leadscrew mill this would also be an upgrade path. You can unbolt your motors from your existing leadscrew mill and bolt them up to this new ballscrew mill; you would then have you complete old leadscrew mill to sell or maybe to use as a manual mill.

5019CR-Kit
This is the all the parts you need to upgrade your existing 2019CR-ER based leadscrew mill to ballscrews on all three axis.This option includes a new XY base and X axis screw and truck assembly. You reuse your Z axis ways, headstock and spindle. Take note that for the ball screw mill we recommend the 276oz-in stepper motors as they are a better match.

2019CR-ER $1,211.00
5019CR-ER $1,850.00
5019CR-Kit $1,400.00

Taig CNC Mill Complete Kit We offer complete Taig CNC systems with our rugged STDR-4C controller. A basic system is available as well as starter kits for even more savings, please see the links at the bottom of this page.

Features

  • ER-16 Spindle
  • Height - 26 3/8", Width - 22", Depth 21"
  • 1/2" Leadscrews or 12mm Ballscrews on X,Y,& Z
  • Construction - Steel, hard anodized aluminum on all moving components
  • Adjustable brass gibs, and precision ground steel ways
  • Z axis steel box ways
  • Travel - X 12", Y 5.5", Z 6"
  • Z-Axis swivel 90 degrees
  • 6 spindle speeds 1000-10000 RPM
  • Spindle head rotation 90 degrees



Specifications

  • Height - 26 3/8", Width - 22", Depth 21"
  • Weight - 85 lbs
  • Maximum bearing runout 0.0003"
  • Pulley type std. 5/8 in. bore multi-step 'V' belt
  • Screws accurate to 0.006" per foot
  • Travel - X 12", Y 5.5", Z 6"
  • Maximum Z-distance to table 9.0"
  • Table dimensions 3 1/2 x 18.4 inches
  • 6 spindle speeds 1000-10000 RPM
  • Spindle head rotation 90 degrees



Options

Coming Soon...

Downloads


Coming soon...
