Wire Gauge (Number) Drill Bits #40-#59

Wire Gauge (Number) Drill Bits, #40 through #59
*
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

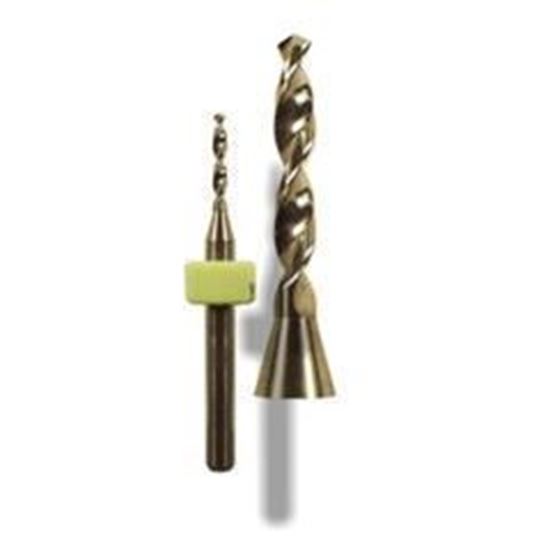

- PreciseBits Carbide Micro Drills - Wire Gauge (Number) Sizes 40-59

High-quality carbide micro drill featuring a shallow point angle that minimizes backside breakout and splintering while the geometry and back tapered flutes virtually eliminate top surface splintering. The tip geometry produces shallow glue pockets for anchoring inlaid components.

A great choice for such applications such as drilling hardwoods, non-ferrous metals, inlay pockets for mother-of-pearl dots and drill printed circuit board substrates.

Specifications
  • Geometry - 2 flute, 1/8" shank, drill point
  • Length - 1.5" ±0.010"
  • Diameter - nominal +0.000, -0.0005"
  • Shank Diameter - 0.1248"
  • Total Included Angle:
    • dia ≤ 0.100" (2.54mm) - 135°
    • dia > 0.101" (2.57mm) - 160°
  • Max Runout (TIR) - ±0.0002"
  • Drill Depth - Varies by diameter
  • Anticipated Life - 3,000 holes min in FR4 epoxy glass
  • Material - solid submicrograin carbide / stainless steel shank
  • Ring Set - 0.800" ±0.002"
  • Operating RPM - CNC certified operation 20k RPM to 100k RPM

Bit sizes

ItemDescriptionUnit Price
1) PB-DC208-0980-040D#40 (0.0980", 2.489mm), 0.400" max DOC$2.76
2) PB-DC208-0960-040D#41 (0.0960", 2.438mm), 0.400" max DOC$2.76
3) PB-DC208-0935-040D#42 (0.0935", 2.375mm), 0.400" max DOC *3/32" FRACTIONAL EQUIVALENT$2.76
4) PB-DC208-0890-040D#43 (0.0890", 2.260mm), 0.400" max DOC$2.76
5) PB-DC208-0860-040D#44 (0.0860", 2.184mm), 0.400" max DOC$2.76
6) PB-DC208-0820-040D#45 (0.0820", 2.083mm), 0.400" max DOC$2.76
7) PB-DC208-0810-040D#46 (0.0810", 2.057mm), 0.400" max DOC *2.05mm METRIC EQUIVALENT$2.76
8) PB-DC208-0785-040D#47 (0.0785", 1.994mm), 0.400" max DOC *2.00mm METRIC EQUIVALENT$2.76
9) PB-DC208-0760-040D#48 (0.0760", 1.930mm), 0.400" max DOC$2.48
10) PB-DC208-0730-040D#49 (0.0730", 1.854mm), 0.400" max DOC$2.48
11) PB-DC208-0700-040D#50 (0.0700", 1.778mm), 0.400" max DOC$2.48
12) PB-DC208-0670-040D#51 (0.0670", 1.702mm), 0.400" max DOC *1.70mm METRIC EQUIVALENT$2.48
13) PB-DC208-0635-040D#52 (0.0635", 1.613mm), 0.400" max DOC$2.48
14) PB-DC208-0595-040D#53 (0.0595", 1.511mm), 0.400" max DOC$2.48
15) PB-DC208-0550-040D#54 (0.0550", 1.397mm), 0.400" max DOC *1.40mm METRIC EQUIVALENT$2.48
16) PB-DC208-0520-062D#55 (0.0520", 1.321mm), extended plunge drill bit, 0.620" max DOC$7.98
17) PB-DC208-0520-040D#55 (0.0520", 1.321mm), 0.400" max DOC$2.48
18) PB-DC208-0465-040D#56 (0.0465", 1.181mm), 0.400" max DOC$2.48
19) PB-DC208-0430-040D#57 (0.0430", 1.092mm), 0.400" max DOC *1.10mm METRIC EQUIVALENT$2.48
20) PB-DC208-0420-040D#58 (0.0420", 1.067mm), 0.400" max DOC$2.48
21) PB-DC208-0410-040D#59 (0.0410", 1.041mm), 0.400" max DOC *1.05mm METRIC EQUIVALENT$2.48
