TAIGTurn CNC Lathe


This page is still being worked on. Email to place an order.

X-Axis Hard Anodized Table with Steel Ways and a tapered Gib and Z-axis with square Steel ways

Hardened ER16 Spindle or 5C Spindle Headstock for superior accuracy

Available with standard leadscrews or option high precision ballscrews.

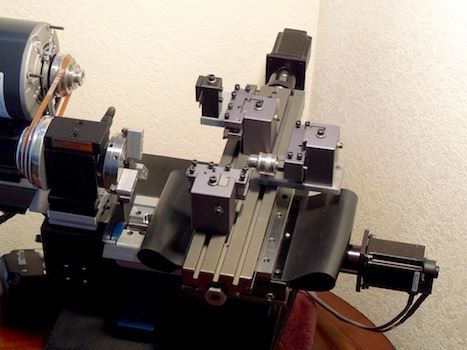

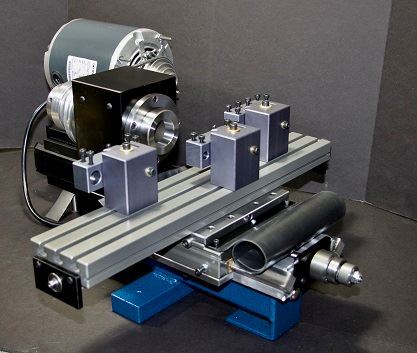

The TAIGTurn 2000 CNC Lathe is a top of the line desktop CNC lathe. It is a very rigid and precise machine that uses some of the most advanced techniques that allows it to produce parts that used to be done on machines that cost thousands of dollars more. With a rapid feed of up to 75 inches per minute you can go from tool to tool in just seconds. A key feature of the CNC Lathe is the ability to single point thread by using the optional tach sensor kit. The main frame consists of a 2.5" square steel tubing to provide a very solid feel. The leadscrews are all 1/2-20 unlike a lot of machines of similar size that use 1/4" leadscrews. The moving slides ride on Ground Steel Ways with full gib adjustments for wear as the years of use go by. Overall working accuracy should exceed .0005" or 0.0002" ballscrews.


TaigTurn CNC Lathe Basic Kit (leadscrews)

  • 1/4 hp spindle motor
  • ER16 spindle
  • 3-Jaw Chuck
  • 2 adjustable Tool Posts
  • 6 ER16 collets
  • NEMA 23 motor mounts
  • 2 Spindle wrenches
  • STDR-4C two axis kit,
    • control box with Ethernet interface,
    • (2) stepper cables and stepper motors
  • Taig line filter/switch box
  • Mach 3
Total  $2,393.00
Package Savings$50.00
You Pay Only$2,343.00

Also check the options tab for threading sensor option and the base lathe only.

Specifications

General

  • Height 14"
  • Width 24"
  • Depth 31"
  • Weight 80 lbs
  • Maximum bearing runout 0.0004"
  • X axis dovetails 45°
  • Z axis dovetails 90°
  • 1/2"-20 leadscrews on X & Z
  • All lead screw drives have friction adjustable micrometer dials in .001" increments
  • Ball Screws are 12mm x 2.5mm on X & Z
  • Pulley type std. 5/8" bore multi-step belt.
  • Construction - Steel, hard anodized aluminum on all moving components, adjustable brass gibs, and precision ground steel ways hand lapped for long life and accuracy.

Capacity

  • Travel in X axis 12"
  • Travel in Z axis 6"
  • Max Rapid travel per axis 75 in/min
  • Table dimensions 3.5" x 18.4"
  • 4 spindle speeds 435-1800 RPM

Spindle ER16

  • Spindle Runout less than .0003"
  • Sealed precision ball bearing
  • Bearing OD 1.5748", ID 0.6692"
  • Spindle nose 22mm X 1.5mm
  • Spindle hole 0.406"
  • Spindle ID taper 8° (16° included)
  • Max. collet diameter 3/8"
  • Pulley size 5/8" bore.
  • Ball Bearings in all leadscrew bearing blocks

Spindle 5C

  • SSpindle Runout less than .0002"
  • Sealed precision ball bearing
  • Bearing OD 2.9528", ID 1.7717"
  • Spindle hole 1 3/16"
  • Spindle ID taper 10 deg (20 deg included)
  • Max. collet diameter 1 1/16"
  • Pulley size 1.625" bore.
  • Ball Bearings in all leadscrew bearing blocks

Options


TAIGTurn Accessory PRICES

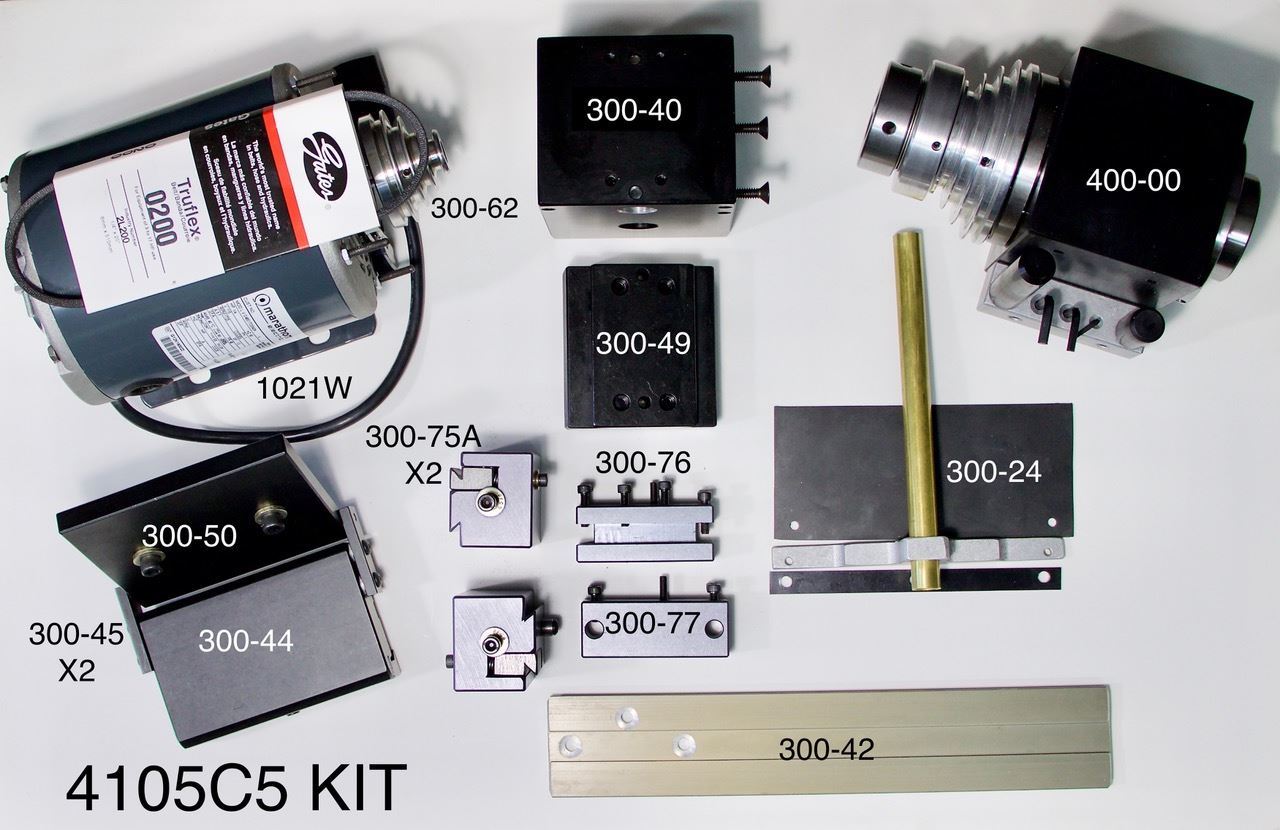

#300-00This is the ER16 spindle headstock for the Lathe. The spindle is heat treated and the angle is ground off the bearings to ensure that the spindle runs within .0002. Includes the collet Nut $124.50
#400-00This is the 5C spindle headstock. The spindle is heat treated and the angle is ground off the bearings to ensure that the spindle runs within .0002. Includes the collet draw bar, pulley, spindle lock tool and spindle tighten tool (Weight 13 pounds) $599.99
#4100ERTAIG Mill to Lathe Conversion kit with ER16 Headstock. This kit comes with all the parts to convert your TAIG Mill to a Lathe. It includes the following parts 1021W, 300-00ER, 300-24, 300-40, 300-42, 300-44, 2-300-45, 300-49, 300-50, 300-62, 300-64 plus a 1050ER (3-Jaw Chuck), 2 adjustable Tool Posts (2-300-75 ,300-76,300-77) and a set of 6 ER collets (1040ER). $699.99
#4105C5This is the ER16 spindle headstock for the Lathe. The spindle is heat treated and the angle is ground off the bearings to ensure that the spindle runs within .0002. Includes the collet Nut $1199.99


MANUAL LATHE PRICE

3029MANCNC Ready Lathe with 1/2-20 Leadscrews is factory assembled wired up and ready to go. It has a 1/4 hp spindle motor and comes with an ER 16 spindle, 3-Jaw Chuck, 2 adjustable Tool Posts, a set of 6 ER collets and Nema 23 motor mounts. (does not include 'X' or 'Z' Axis motors, Control Box or Software) $1475.00


CNC READY LATHE PRICES

#3019CRCNC Ready Lathe with 1/2-20 Leadscrews is factory assembled wired up and ready to go. It has a 1/4 hp spindle motor and comes with an ER 16 spindle, 3-Jaw Chuck, 2 adjustable Tool Posts, a set of 6 ER collets and Nema 23 motor mounts. (does not include 'X' or 'Z' Axis motors, Control Box or Software) $1200.00
#3029CRCNC Ready Lathe with 1/2-20 Leadscrews is factory assembled wired up and ready to go. It has a 1/4 hp spindle motor and comes with a 5C spindle Headstock, 2 adjustable Tool Posts, and Nema 23 motor mounts. (does not include 'X' or 'Z' Axis motors, Control Box or Software) $1700.00
#4019CRCNC Ready Lathe with Ball Screws is factory assembled wired up and ready to go. It has a 1/4 hp spindle motor and comes with an ER 16 spindle, 3-Jaw Chuck, 2 adjustable Tool Posts, a set of 6 ER collets and Nema 23 motor mounts. (does not include 'X' or 'Z' Axis motors, Control Box or Software) $1625.00
#4029CRCNC Ready Lathe with Ball Screws is factory assembled wired up and ready to go. It has a 1/4 hp spindle motor and comes with an 5C spindle Headstock, 2 adjustable Tool Posts, and Nema 23 motor mounts. (does not include 'X' or 'Z' Axis motors, Control Box or Software) $2125.00


Tool Post Prices

#300-75Adjustable Tool Post Main Body $52.00
#300-76Tool Post Toolholder with slot to hold 3/8" tool. $38.00
#300-77Tool Post Toolholder with two 3/8" diameter holes to hold 3/8" dia. tools. $38.00
#300-78Tool Post Toolholder with two 5/8" diameter holes to hold 5/8" dia. tools. $38.00


TAIGTurn Lathe Parts

#300-04ER16 1 1/4" Spindle Wrench Tool $5.00
#300-24Brass Tube Holder $15.00
#300-40Lathe Headstock and Motor Rail Block $50.00
#300-42Tool Post Toolholder with two 5/8" diameter holes to hold 5/8" dia. tools. $38.00
#300-44Lathe Motor Slide Body $25.00
#300-45Motor Slide Pivots (2 req) $3.00
#300-49Lathe Headstock Dovetail Mount $27.50
#300-50Lathe Motor Mount Plate $20.00
#300-62Lathe 1/2" Motor Pulley $15.00


CNC Lathe threading kit

SOI-TT-ThreadAdd a threading sensor to your Taig Turn CNC lathe. Contains LMTS-4I Junction box and TaigTurn Tach sensor kit $84.00
